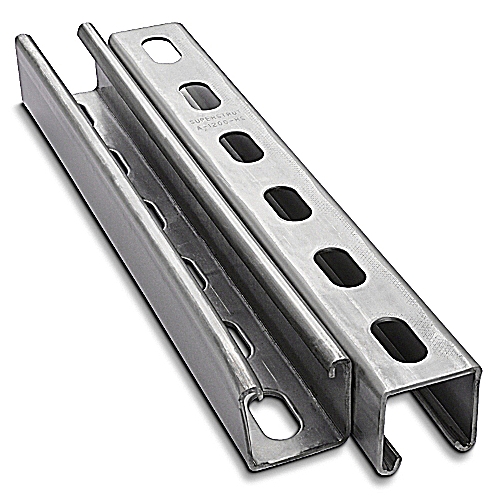

Strut Channel 41x41mm (H.D.G)

Material: Cold-Rolled Low Carbon Steel (Q195 / Q235)
Finish: Hot Dipped Galvanized Class 4
Standard: BS EN ISO 1461
Sizes: 41mm*41mm, 41mm*21mm
Slot Size: 11*35mm or 14*28mm (11*30mm,14*30mm,10*25mm,12*25mm also available).
Length: 10 or 20 ft (3m,5.8m,6m),special lengths are available upon request.
Usage: To support conduit and cable in combination with the clamps & fittings.

Detail
Feedback

CAT #	SIZE		THICKNESS	LENGTH			TYPE
	inch	mm	mm	m	m	m
C4115P	1-5/8 x 1-5/8	41 x 41	1.5	3	5.8	6	Plain
C4115S	1-5/8 x 1-5/8	41 x 41	1.5	3	5.8	6	Sloted
C4118P	1-5/8 x 1-5/8	41 x 41	1.8	3	5.8	6	Plain
C4118S	1-5/8 x 1-5/8	41 x 41	1.8	3	5.8	6	Sloted
C4120P	1-5/8 x 1-5/8	41 x 41	2	3	5.8	6	Plain
C4120S	1-5/8 x 1-5/8	41 x 41	2	3	5.8	6	Sloted
C4123P	1-5/8 x 1-5/8	41 x 41	2.3	3	5.8	6	Plain
C4123S	1-5/8 x 1-5/8	41 x 41	2.3	3	5.8	6	Sloted
C4125P	1-5/8 x 1-5/8	41 x 41	2.5	3	5.8	6	Plain
C4125S	1-5/8 x 1-5/8	41 x 41	2.5	3	5.8	6	Sloted
C41275P	1-5/8 x 1-5/8	41 x 41	2.75	3	5.8	6	Plain
C41275S	1-5/8 x 1-5/8	41 x 41	2.75	3	5.8	6	Sloted
