Home » Strut » Strut Channel » Strut Channel 41x21mm Pre-Galvanized

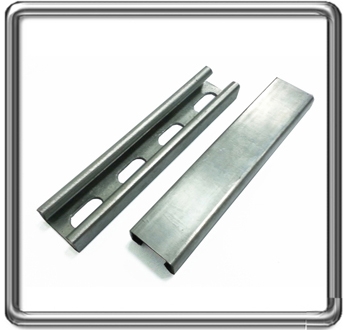

Strut Channel 41x21mm Pre-Galvanized

Material: Cold-Rolled Low Carbon Steel Q195
Finish: Pre-Galvanized Class 3
Standard: BS EN 10147 - 1992
Sizes: 41mm*41mm, 41mm*21mm
Slot Size: 11*35mm or 14*28mm (11*30mm,14*30mm,10*25mm,12*25mm also available).
Length: 10 or 20 ft (3m,5.8m,6m),special lengths are available upon request.
Usage: To support conduit and cable in combination with the clamps & fittings.

Detail
Feedback

CAT #	SIZE		THICKNESS	LENGTH			TYPE
	inch	mm	mm	m	m	m
C2115P	1-5/8 x 13/16	41 x 21	1.5	3	5.8	6	Plain
C2115S	1-5/8 x 13/16	41 x 21	1.5	3	5.8	6	Sloted
C2118P	1-5/8 x 13/16	41 x 21	1.8	3	5.8	6	Plain
C2118S	1-5/8 x 13/16	41 x 21	1.8	3	5.8	6	Sloted
C2120P	1-5/8 x 13/16	41 x 21	2	3	5.8	6	Plain
C2120S	1-5/8 x 13/16	41 x 21	2	3	5.8	6	Sloted
C2123P	1-5/8 x 13/16	41 x 21	2.3	3	5.8	6	Plain
C2123S	1-5/8 x 13/16	41 x 21	2.3	3	5.8	6	Sloted
C2125P	1-5/8 x 13/16	41 x 21	2.5	3	5.8	6	Plain
C2125S	1-5/8 x 13/16	41 x 21	2.5	3	5.8	6	Sloted
C2127P	1-5/8 x 13/16	41 x 21	2.7	3	5.8	6	Plain
C2127S	1-5/8 x 13/16	41 x 21	2.7	3	5.8	6	Sloted
