What is a Split Bolt Connector?
A split bolt connector is a certified electrical fitting used for splicing, connecting, and grounding copper and aluminum conductors. Its split design and adjustable central bolt allow for easy, tool-friendly installation without special equipment, providing a reliable, corrosion-resistant connection that complies with UL 467 and CSA standards. It is widely used in power distribution, electrical construction, grounding systems, and industrial wiring projects.

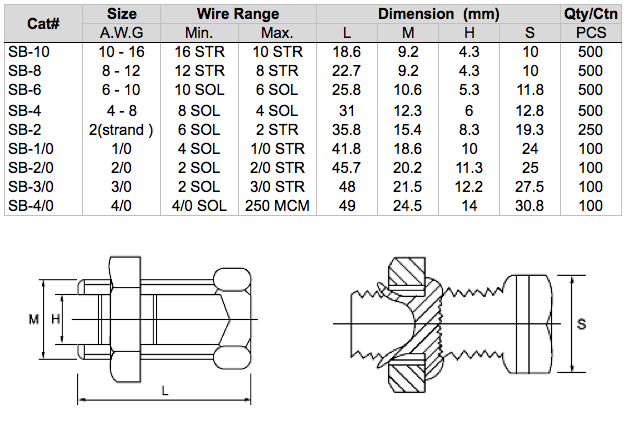

Quick Specs
-
Material: high-strength Brass
-

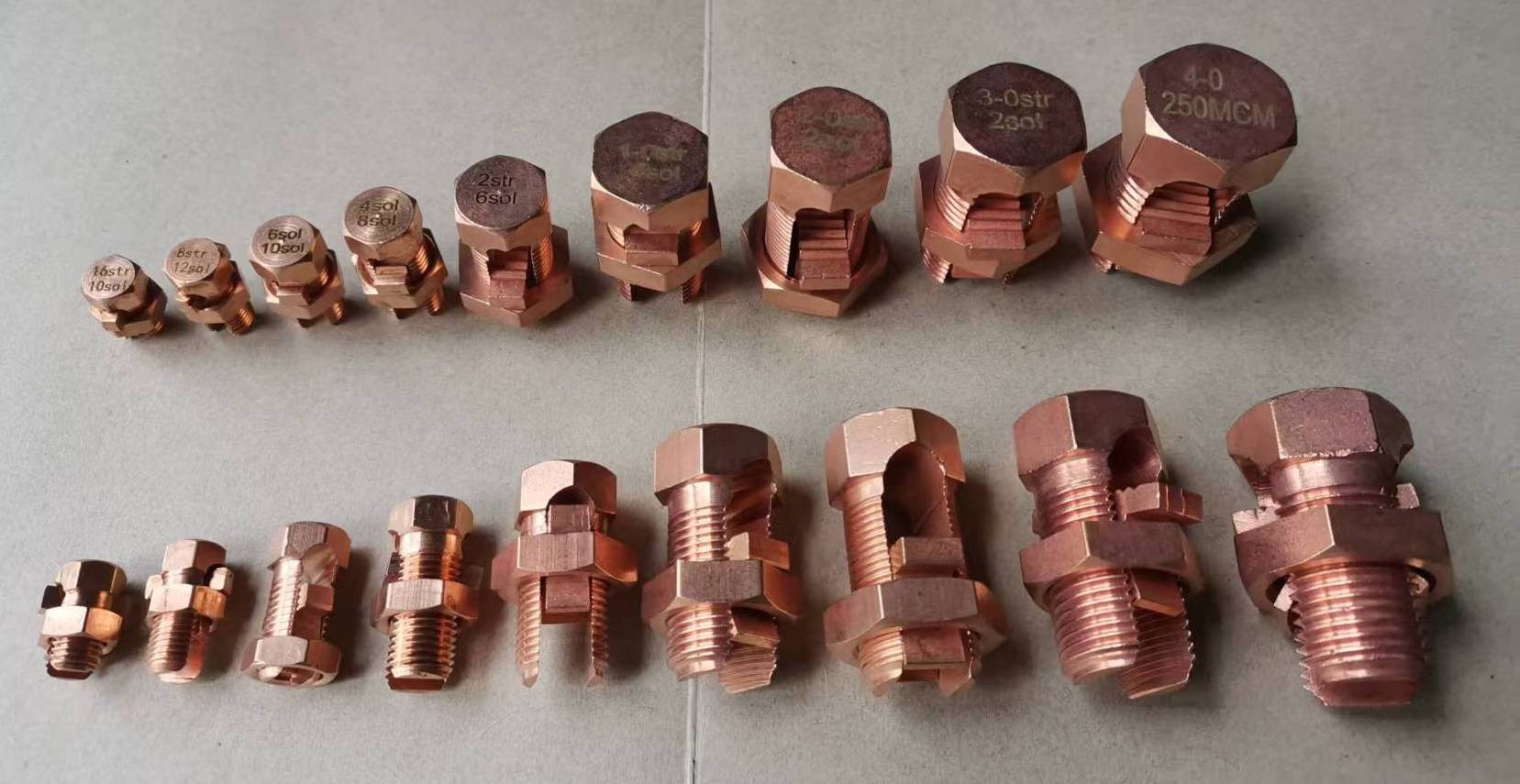

Wire range: 10–16, 8–12，6–10, 4–8, 2 (STR)，1/0，2/0，3/0，4/0.
-
Finish: Copper-plated
-
Standards: UL 467, CSA standard
-
Application: Grounding, bonding, cable splicing
-
Installation: Standard wrench required
Key Features & Benefits
-
Secure & reliable connection, low resistance
-
Corrosion-resistant (tin-plated / zinc alloy)
-
Easy installation with standard wrench
-
Suitable for solid or stranded wires
-
Reusable and adjustable
Typical Applications
-
Grounding & bonding systems
-
Power distribution cabinets & panels
-
Industrial electrical construction
-
Transformer & generator connections
-
Overhead & underground cable splicing
-
Solar energy system wiring
How to Install a Split Bolt Connector
-
Strip the insulation from the conductor ends.
-
Insert both wires into the split bolt connector.
-
Tighten the center bolt with a wrench until firm.
-
Ensure no wire movement and stable contact.
-
For outdoor use, add insulation tape or heat shrink.
How to Choose the Right Split Bolt Connector
-
Match the wire gauge (AWG) to the connector rating.
-
Select material: copper for copper conductors, zinc for general use.
-
Choose corrosion-resistant plating for outdoor or damp areas.
-
Confirm compliance with UL / CSA certifications.
Why Choose Our Split Bolt Connectors?
-
Stable quality & strict inspection
-
Competitive price
-
Full sizes in stock
-
Fast delivery
-
Support OEM & custom labeling
FAQ
-
What wire sizes do split bolt connectors fit?
-They cover a full range from #10 AWG up to 4/0 AWG.
-Yes, you can loosen the bolt and reposition wires.
-
What is your MOQ and lead time?
-Low MOQ for trial orders; bulk orders shipped within 30 days.
Ready to Order?
