Ground Rod

Home » Grounding » Ground Rod » Solid Copper Ground Rod

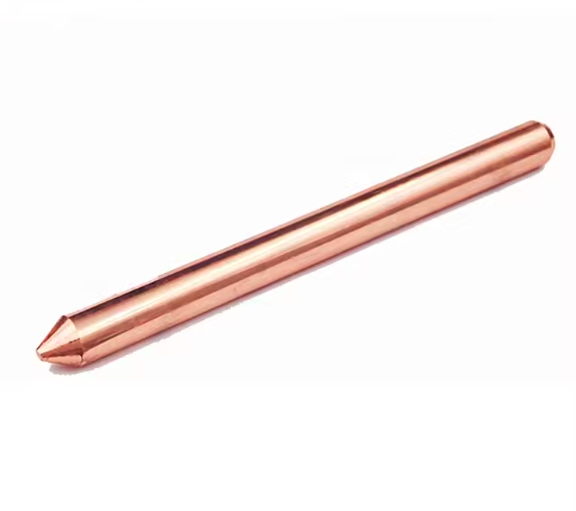

Solid Copper Ground Rod

Solid Copper Ground Rod

Material: Copper
Size: 16mm,18mm,20mm,25mm
Tensile Strength: ≥ 290Nm/mm2
Straightness error: ≤1mm/m
Service life:≥30years
Application: Used in grounding and lightning system in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.
Type: flat or pointed

Pure copper ground rod is suitable for the use of lightning protection conductive to demand higher occasion.

The Solid Copper Ground Rod have characters of anti-corrosion and ductility, which is superior than common copper clad steel rod and easy to install deeply.

It is widely used for earthing system of power plant, transformer station, tower, communication station, airport, railway, subway station, high building, computer room, petrol plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.



CAT# SIZE DIAMETER WEIGHT (kgs)
ROD L 1.5m L 2.0m L 3.0m
GR16C 16mm 16 2.67 3.56 5.34
GR18C 18mm 18 3.39 4.52 6.78
GR20C 20mm 20 4.18 5.58 8.37
GR25C 25mm 25 6.54 8.72 13.08
