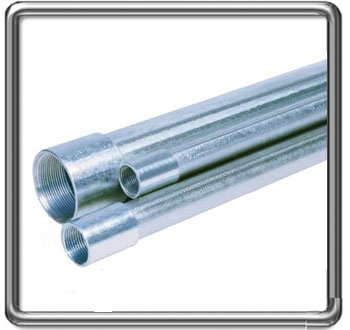

* Seamless, no risk of cable damage
* Light Weight – Approximately one-third the weight of steel
* Corrosion Resistant – Aluminum resists most corrosive atmospheres in industrial environments
* Easy to Install – Can be easily cut, bent and threaded without special tools
* Low Maintenance – Doesn’t leave discoloring streaks or stains.
| SIZE | O.D. | WALL THICKNESS | LENGTH | Color |
PKG /BDL. |
PKG /LIFT |
PKG /LIFT |
||||
| DESIGNATOR | End Cap | ||||||||||
| U.S. | Metric | inch | mm | inch | mm | feet | m | lengths | bundles | lengths | |
| 1/2" | 16 | 0.84 | 21.34 | 0.104 | 2.64 | 10 | 3.05 | Black | 10 | 25 | 250 |
| 3/4" | 21 | 1.050 | 26.67 | 0.107 | 2.72 | 10 | 3.05 | Red | 10 | 25 | 250 |
| 1" | 27 | 1.315 | 33.4 | 0.126 | 3.2 | 10 | 3.05 | Blue | 10 | 20 | 200 |
| 1-1/4" | 35 | 1.660 | 42.16 | 0.133 | 3.38 | 10 | 3.05 | Red | 5 | 20 | 100 |
| 1-1/2" | 41 | 1.9 | 48.26 | 0.138 | 3.51 | 10 | 3.05 | Black | 5 | 20 | 100 |
| 2" | 53 | 2.375 | 60.33 | 0.146 | 3.71 | 10 | 3.05 | Blue | 5 | 9 | 45 |
| 2-1/2" | 63 | 2.875 | 73.03 | 0.193 | 4.9 | 10 | 3.05 | Black | 5 | 6 | 30 |
| 3" | 78 | 3.5 | 88.9 | 0.205 | 5.21 | 10 | 3.05 | Blue | 5 | 4 | 20 |
| 3-1/2" | 91 | 4 | 101.6 | 0.215 | 5.46 | 10 | 3.05 | Black | 5 | 4 | 20 |
| 4" | 103 | 4.5 | 114.3 | 0.225 | 5.72 | 10 | 3.05 | Blue | 5 | 4 | 20 |
| 5" | 129 | 5.563 | 141.3 | 0.245 | 6.22 | 10 | 3.05 | Blue | 2 | 4 | 8 |
| 6" | 155 | 6.625 | 168.3 | 0.266 | 6.76 | 10 | 3.05 | Blue | 2 | 3 | 6 |
|
Dimensions data is for reference only NPT thread with end-cap on each end Rigid Aluminum Yard Elbows meet UL6A. Different thickness or length is available. Tolerance: Outside Diameter: 1/2" to 2"±0.015"(0.38 mm). 2" to 4"±0.0025"; 5" to 6"±1%. Length: 10ft ± 1/4''. |
|||||||||||
