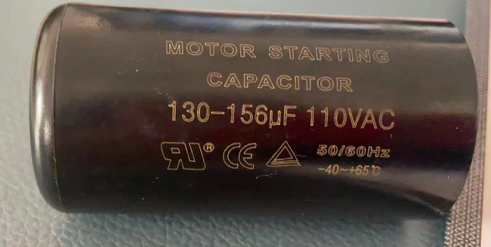

The Motor Starting Capacitor uses aluminum foil as electrode, non-solid electrolyte as medium.
The capacitor start motors in low current and enhance the motor torque.
The Motor Starting Capacitor is well-sealed, solid, easy to install.
The Motor Starting Capacitor is mainly for air conditioners, freezers and other single-phase motor.
Specifications:
|
Capacitance Range
|
20μF~1536μF | |
| Rated Voltage | 110V~330VAC(50/60Hz) | |
| Capacitace Tolerance | ±10%, ±15%, ±20%, or upon customer's demand | |
| Loss Tangent | Tgδ≤0.15（20℃，100Hz） | |
| Standard Temperature | -40℃~+65℃，-20℃~+65℃ | |
| Between derivation head | AC≥1.2Un 2S NO BREAKDOWN | |
| Between derivation head and shell | AC≥2000V 2S NO BREAKDOWN | |
| Durability |
R.voltage≥160v,charged once per minute,last 1S,total 30000 times R.voltage<160V, charged once per 30S,last 1S,total 75000 times |
|
| Executing Standard |
EIA463、IEC60252-2:2003 |
|
