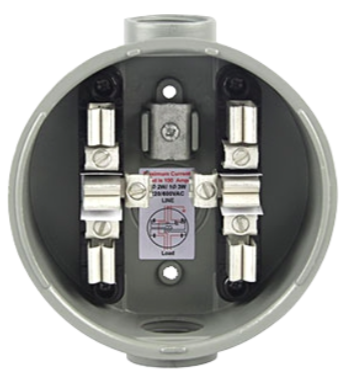

Meter Socket 6 Copper Jaws
• Material:
Enclosure: Die-cast Aluminium with gray cathodic epoxy powder finish
6 Long Jaws: heavy duty Tin plated Copper with Stainless Steel Clips,
Ground connector: Tin plated Copper
Blocks: Black or Transparent Bakelite
Screws: Stainless Steel
Sealing Ring: Stainless Steel 201, sold separately
Fix hub size:1/2”, 3/4”, 1”, 1-1/4”
Feature:
• 100Amps,120/240V AC,Single phase,4 terminals,2 or 3 wires,
• Comply with ANSI C12.7
• line and load lugs: 1/0 max Cu-Al
• Interior: Units are supplied with four terminals
• Mounting: Surface, pole outdoor, NEMA3R
• Hub or hub plate: fixed, top and bottom
• Locking: sealing ring has lock provision
