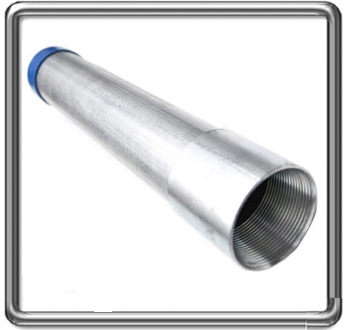

Intermediate Metal Conduit is durable, strong and suitable for the harshest environmental conditions.
These conduits provide complete physical and mechanical protection to any electrical wiring project. Available in varied dimensions, we also customized these metal conduits as per client's specification.
| SIZE | O.D. | I.D. | WALL THICKNESS | LENGTH |
THREADS / INCH |
PKG /BDL. |
|||||||
| DESIGNATOR | STANDARD | THINNER | |||||||||||
| U.S. | Metric | inch | mm | inch | mm | inch | mm | inch | mm | feet | m | lengths | |
| 1/2" | 16 | 0.815 | 20.7 | 0.66 | 16.70 | 0.078 | 1.97 | 0.07 | 1.79 | 10 | 3.05 | 14 | 10 |
| 3/4" | 21 | 1.029 | 26.1 | 0.869 | 22.07 | 0.083 | 2.1 | 0.074 | 1.90 | 10 | 3.05 | 14 | 10 |
| 1" | 27 | 1.29 | 32.8 | 1.105 | 28.07 | 0.093 | 2.35 | 0.085 | 2.16 | 10 | 3.05 | 11.5 | 5 |
| 1-1/4" | 35 | 1.638 | 41.6 | 1.448 | 36.77 | 0.095 | 2.41 | 0.085 | 2.16 | 10 | 3.05 | 11.5 | 3 |
| 1-1/2" | 41 | 1.883 | 47.8 | 1.683 | 42.74 | 0.1 | 2.54 | 0.09 | 2.29 | 10 | 3.05 | 11.5 | 3 |
| 2" | 53 | 2.358 | 59.9 | 2.15 | 54.60 | 0.105 | 2.67 | 0.094 | 2.41 | 10 | 3.05 | 11.5 | 3 |
| 2-1/2" | 63 | 2.858 | 72.6 | 2.557 | 64.95 | 0.15 | 3.81 | 10 | 3.05 | 8 | 2 | ||
| 3" | 78 | 3.476 | 88.3 | 3.176 | 80.67 | 0.15 | 3.81 | 10 | 3.05 | 8 | 2 | ||
| 3-1/2" | 91 | 3.971 | 100.9 | 3.671 | 93.24 | 0.15 | 3.81 | 10 | 3.05 | 8 | 1 | ||
| 4" | 103 | 4.465 | 113.4 | 4.166 | 105.82 | 0.15 | 3.81 | 10 | 3.05 | 8 | 1 | ||
|
Different thickness or length is available. Tolerance: O.D: 1/2" to 1-1/2" ± 0.015"(0.38mm), 2" to 4" ± 1%. Length: 10ft ±0.25"(6.35mm). |
|||||||||||||
