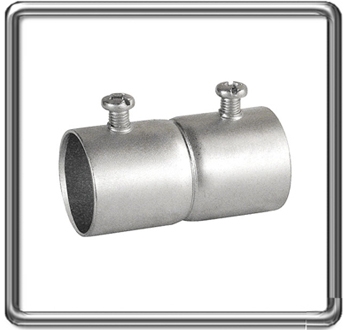

EMT Coupling Set Screw (Steel)

EMT Coupling Set Screw (Steel)

Material: Steel
Finish: Galvanized
Standard: UL 514B
Thread: NPT
Size: 1/2” to 4”
Usage: to connect the ends of two EMT conduits together to extend the raceway in dry locations.

EMT Coupling Set Screw (Steel):

CAT# SIZE
B50S 1/2"
B75S 3/4"
B100S 1"
B125S 1-1/4"
B150S 1-1/2"
B200S 2"
B300S 3"
B400S 4"
Advanges:
  • provide concrete tight connections when taped and properly secured with the included set screws, and are rated for electrical applications above 600 volts.
  • heavy gauge steel construction maintains mechanical protection and solid grounding of one conduit to another.
  • zinc electroplated for excellent corrosion protection in damp locations.
  • Set screw couplings are made with a versatile combination head screw that can securely fasten one conduit to another using a slotted, Phillips, or Robertson head screw driver.
