GI Conduit BS31/BS4568

Home » Conduits » GI Conduit BS31/BS4568 » BS31 Conduits

BS31 Conduits

BS31 Conduits

Material: Steel Q195
Finish: pre-galvanized
Size: 3/4” to 1-1/4”

Detail
Feedback

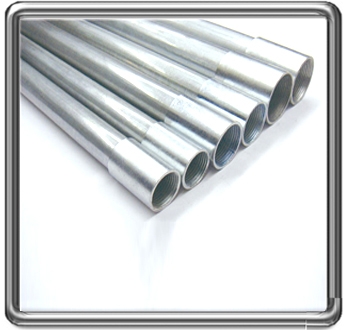

British Standard Conduit BS31

Threaded Conduit with Heavy Guage

Metric size threading on both ends

Ends protected with coupling & plastic cap.

Inside weld bead controlled to a minimum for easier wire pulling.

BS31 CONDUIT	Size	Outside Diameter		Thickness		Thread Length		Length
BS31 CONDUIT	Size	Min	Max	Nominal	Thinner	Min	Max	Length
CAT#	inch	mm	mm	mm	mm	mm	mm	m
BS31-34	3/4"	18.8	19.1	1.6	1.35	13.5	14.3	3.75
BS31-1	1"	25.1	25.4	1.6	1.35	16.7	17.5	3.75
BS31-114	1-1/4"	31.5	31.8	1.6	1.35	18.3	19.1	3.75
