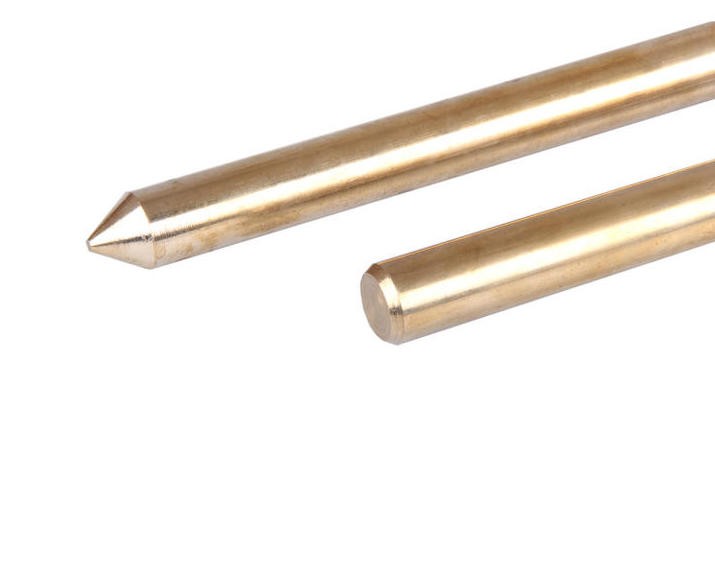

Brass Ground Rod

Brass Ground Rod

Material: Brass
Size: 16mm,18mm,20mm,25mm
Tensile Strength: ≥ 290Nm/mm2
Straightness error: ≤1mm/m
Service life:≥30years
Application: Used in grounding and lightning system
Type: flat or pointed

Brass Ground Rod is made of an alloy of copper and zinc, with a brass content of 56% -68% and a melting point of 934-967 degrees. It is anti-corrosion and ductility, superior than common copper clad steel rod and easy to install deeply.

Brass Ground Rod is widely used for earthing system of power plant, transformer station, tower, communication station, airport, railway, subway station ,high building, computer room, petro plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.



CAT# SIZE DIAMETER WEIGHT (kgs)
ROD L 1.5m L 2.0m L 3.0m
GR16B 16mm 16 2.26  3.01  4.509
GR18B 18mm 18 3.25  4.33  6.493
GR20B 20mm 20 4.01  5.34  8.016
GR25B 25mm 25 6.263 8.35 12.525
